特點描述Feature description:

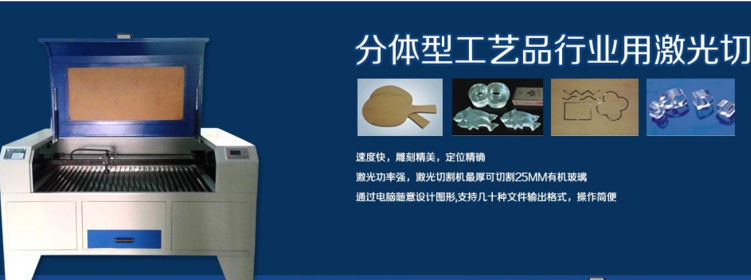

1 、由我公司引進國外先進技術生產出的有機玻璃激光切割雕刻機，集切割，雕刻功能于一體，激光切割機速度快，雕刻準確定位準確。激光功率強，激光切割機厚度可切割25MM有機玻璃。
By our company to introduce foreign advanced technology to produce the organic glass laser cutting engraving machine,
cutting, engraving function in one, laser cutting machine speed, fine carving, accurate positioning. Laser power, laser cutting machine can cut the most thick 25MM organic glass.
2、 激光切割機使用臺灣原裝導軌，切割準度0.05mm。激光切割機軟件功能強大，切割各種圖形反應快。結實鋁型材龍門架結構，多年不變形。
Laser cutting machine using Taiwan original guide rail, cutting precision 0.05mm. Laser cutting machine software is powerful, cutting a variety
of graphics with high precision, fast response. Longmen strong aluminum frame structure, no deformation for many years.
3 、激光切割機使用國內80W穩定激光器系統可每天24小時不間斷使用，聚焦鏡片、金屬反光鏡片，光能損失少，能量更集中。激光切割機切割速度快：如切割5mm厚度的壓克力，切割速度在1.2米/分鐘以上。
Laser cutting machine using the domestic 80W stable laser system can be used for 24 hours every day, high energy focus
lens, excellent metal reflective lenses, light energy loss less, more concentrated energy. Laser cutting machine cutting speed: such as cutting thickness of 5mm acrylic, cutting speed at 1.2 meters per minute
4、 采用固定工作臺，獨特的旋轉收束激光頭設計，可根據需要升降切割頭進行調焦，
Uses the fixed working table and unique rotating bandha laser head design, according to the need to lift the cutting head focusing, high precision.
5 、激光切割機獨到的設計使系統的運行更加平穩，板材切割面的光澤度達到超乎想象的平滑光整，完全省去了傳統的刀刻火拋等煩瑣的工序。
Laser cutting machine original design make the system run more smoothly, sheet metal cutting surface gloss reach beyond
the imagination of smooth finishing, completely eliminating the need for traditional knife engraved fire throwing and cumbersome process.
6 、可通過電腦隨意設計圖形,支持幾十種文件輸出格式，操作簡便,性能穩定,切割加工具有高效率、無污染等制作雕刻樣品，
直接帶來豐厚的效益。
Through the computer random design graphics, dozens of output file format support,
has the advantages of simple operation, stable performance, cutting machine with high precision, high efficiency, high price, no pollution, and many other advantages, carving delicate samples brought directly to the huge benefits.
應用材料Application materials:
各類觸摸屏、導電膜、背光板、擴散膜、各類電子用絕緣材料、SMT罩板、PET、PVC、PC、PP、ABS、木材、紙張、橡膠、皮革、亞克力、有機板、樹脂、布匹纖維及復合材料等非金屬材料。
All kinds of touch screen, conductive film, backlight, diffusion film, all kinds of electronic with insulating materials, SMT cover board, pet, PVC, PC, PP, ABS, wood, paper,
rubber, leather, acrylic, organic board, resin, cloth fiber and composite materials such as nonmetallic material.
相關參數/ Relevant Parameters
|
機型品牌：
|
“禾力激光”
|
|
激光器類型：
|
封離式CO2激光器，水冷
|
|
激光能量控制：
|
1～100%手動和軟件控制
|
|
雕刻速度：
|
0～2500mm/s
|
|
操作系統：
|
LASER STAR，USB連接口，LCD液晶顯示面板，可脫機操作
|
|
重復定位度：
|
<0.01mm
|
|
成文字：
|
漢字2*2；字母1*1
|
|
雕刻深度：
|
0～25mm（視材料情況而定）
|
|
分 辨 率：
|
1200dpi
|
|
電 源
|
AC220V±10% 50Hz
|
|
工作溫度：
|
0~45℃
|
|
支持圖形格式：
|
BMP、JPEG、GIF、TIFF、PCX、PLT、AI、TGA、DXP等
|
|
輔助裝置：
|
吸風機與排風裝置
|
|
工作濕度：
|
5%～95%（無凝水）
|
|
雕刻面積：
|
1300mm*900mm
|
|
激光功率：
|
80W，100W，150W（可選配）
|
|
外形尺寸：
|
1800mm*1150mm*1060mm
|
|
凈 重：
|
168kg
|
|
總 功 率：
|
<1350W
|
|
Model brand：
|
"He power laser"
|
|
Type of laser：
|
Sealed off CO2 laser, water cooling
|
|
Laser energy control：
|
1 ~ 100% manual and software control
|
|
Engraving speed：
|
0～2500mm/s
|
|
operating system：
|
STAR USB, LASER connection port, LCD liquid crystal display panel, can be offline operation
|
|
Minimal form of text (mm)：
|
Chinese character 2*2; letter 1*1
|
|
Engraving depth：
|
0～25mm（Depending on the material conditions）
|
|
Resolving power
|
1200dpi
|
|
Power Supply：
|
10%±AC220V 50Hz
|
|
Working temperature:
|
0~45℃
|
|
Support graphics format:
|
BMP, JPEG, GIF, TIFF, PCX, PLT, AI, TGA, DXP, etc.
|
|
Auxiliary device:
|
Suction fan and exhaust device
|
|
Working humidity:
|
5% ~ 95% (no condensate)
|
|
Engraving area:
|
1300mm×900mm
|
|
Laser power:
|
80W, 100W, 150W (optional)
|
|
Net weight:
|
168kg
|
|
Total power:
|
<1350W
|
激光雕刻切割機特點Characteristics of laser engraving and cutting machine：

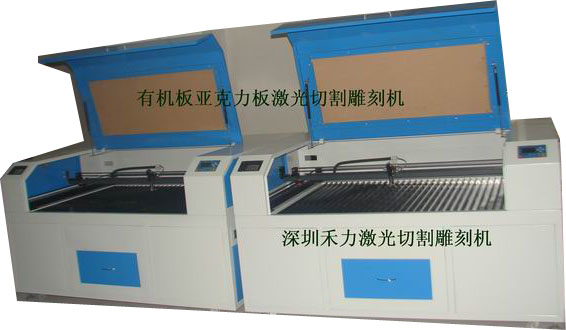

一、HL-960激光切割雕刻機，
有效加工面積：900mm﹡600mm，
可直接進料寬度900mm以內。
HL-960 laser cutting engraving machine, effective processing area: 900mm * 600mm, can be directly feed
width 900mm.
二、 配置To configure：
1、 激 光 器：長度1.6米，
最大發光功率80W，
聚焦后切割功率75W。
Laser: length of 1.6 meters, maximum luminous power 80W, focused after cutting power 75W.
2、 導 軌：臺灣原裝直線導軌，臺灣上銀牌導軌。
Guide rail: Taiwan original linear guide rail, Taiwan on the silver guide rail, high precision.
3、
驅動系統：八線高速步進系統，專業驅動器驅動。
Drive system: eight line high speed stepper system, professional driver.
4、 硬件插補：切割各種圖形反應快。
Hardware interpolation: the only domestic, cutting a variety of graphics, high precision, fast response.
5、 冷卻水箱：配置CW3000型冷水箱。
Cooling water tank: CW3000 type cold water tank.
6、 550W強力抽風機。
550W powerful exhaust fan.
7、 500W小氣泵。
500W pump.
8、 進口聚焦鏡。
Imported focus lens.
9、 全套禾力軟件激光切割雕刻系統。
A full set of cutting and engraving system for laser cutting.
三、技術支持及售后Technical support and after sales
1 、負責操作人員的使用和技術培訓。
Responsible for the operator's use and technical training.
2 、負責設備的運輸、安裝和調試到位。
Responsible for transportation, installation and commissioning of
the equipment.
4 、負責軟件的免費升級服務。
Responsible for software free upgrade service.
5 、提供設備的終生上門維修服務。
To provide equipment for a lifetime home repair service.
6 、購機時激光管質保標準為規定時間內若速度（或公率）下降到國家標準，由我廠更換，超過此標準由客戶自行購買；我廠負責上門安裝。
Purchase laser tube standard warranty for within a specified period of time if the speed (or public rate dropped to the national standard, by our factory replacement,
exceed the standard by the customer to buy their own, our factory is responsible for on-site installation.
歡迎您來電詳細咨詢，我們將竭誠為您服務！相信我們定是您值得信賴的合作伙伴！
Welcome to call detailed consultation, we will be happy to serve you! I believe
we will be your trusted partner!
